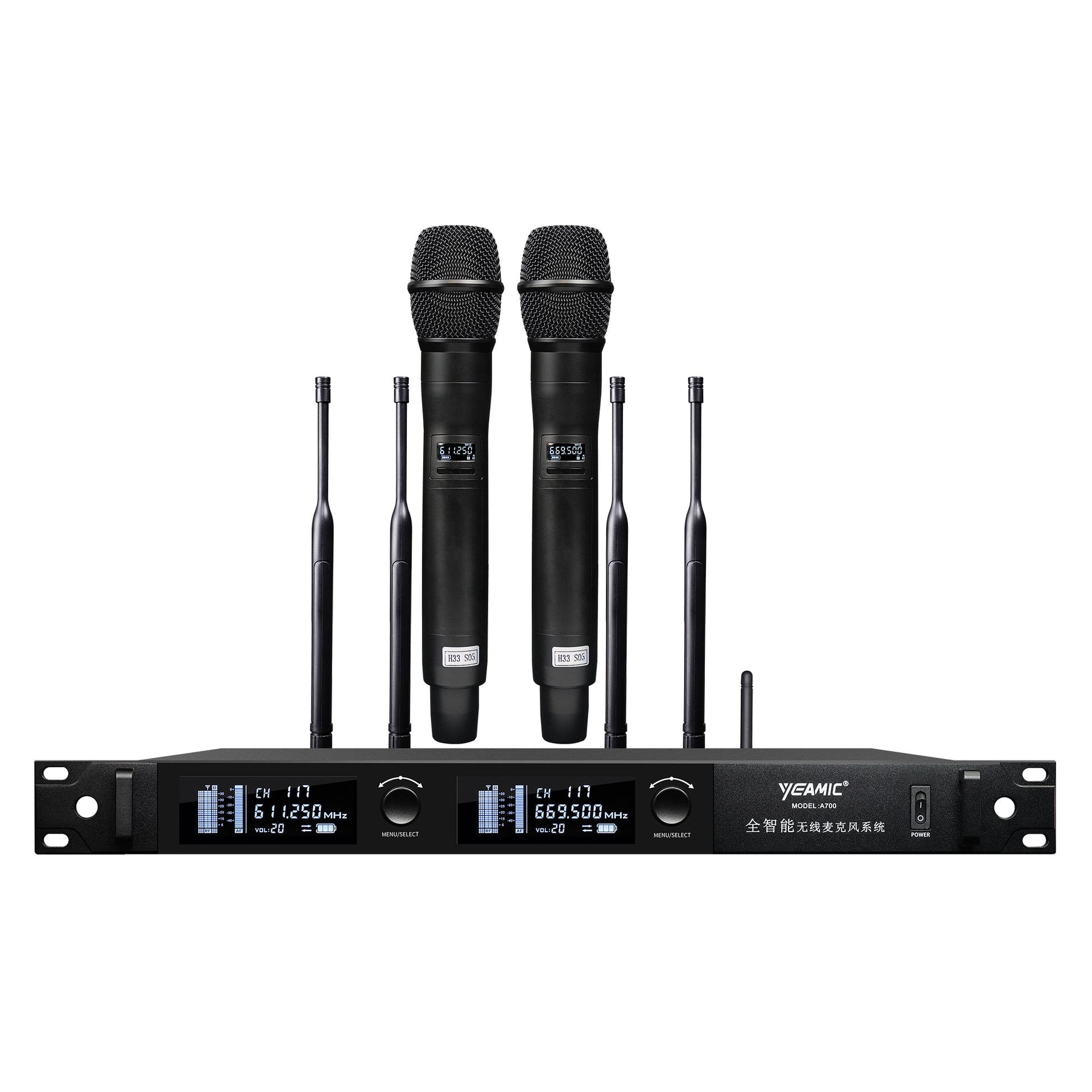

Smart wireless microphones with leading interference free technology A700 Yeamic intelligence

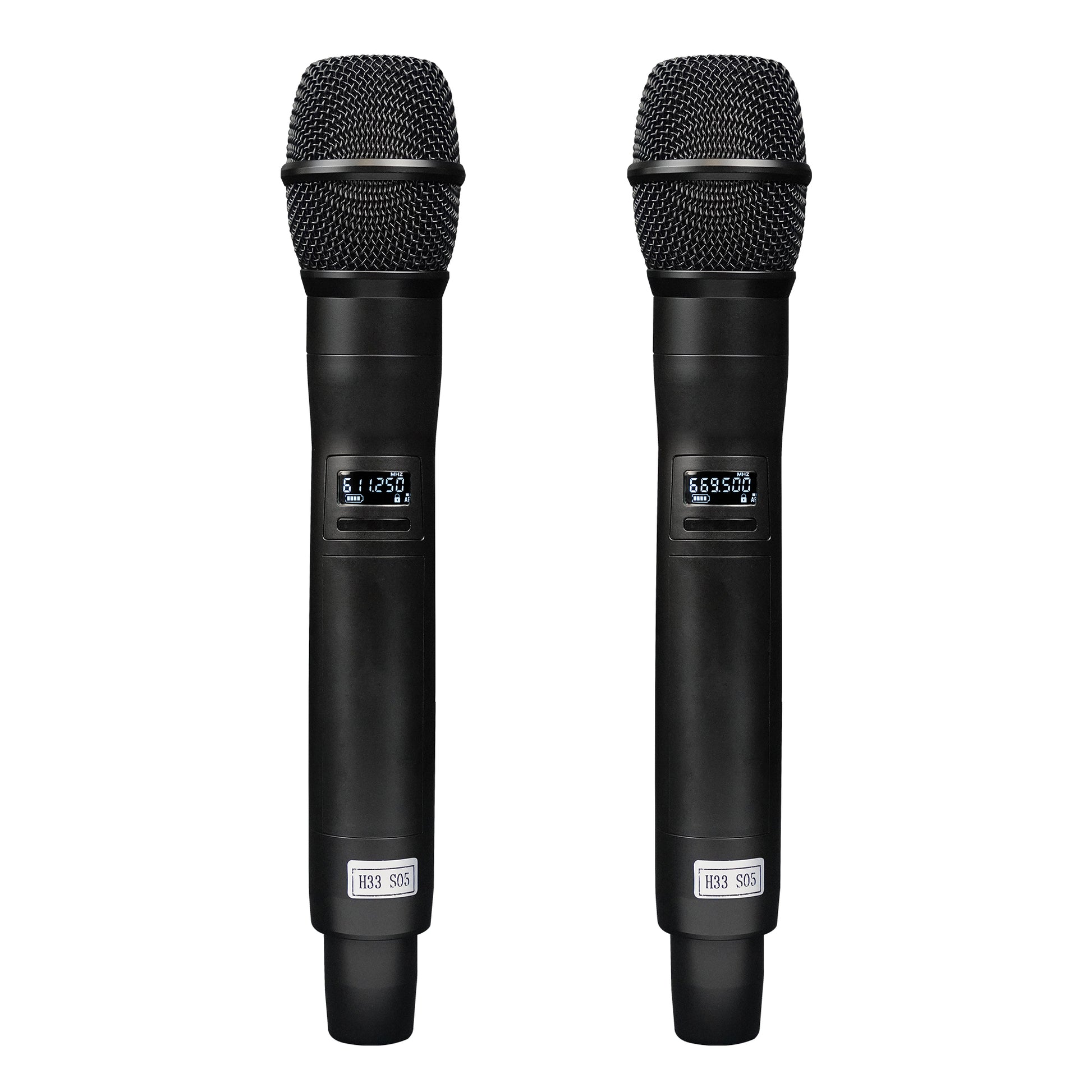

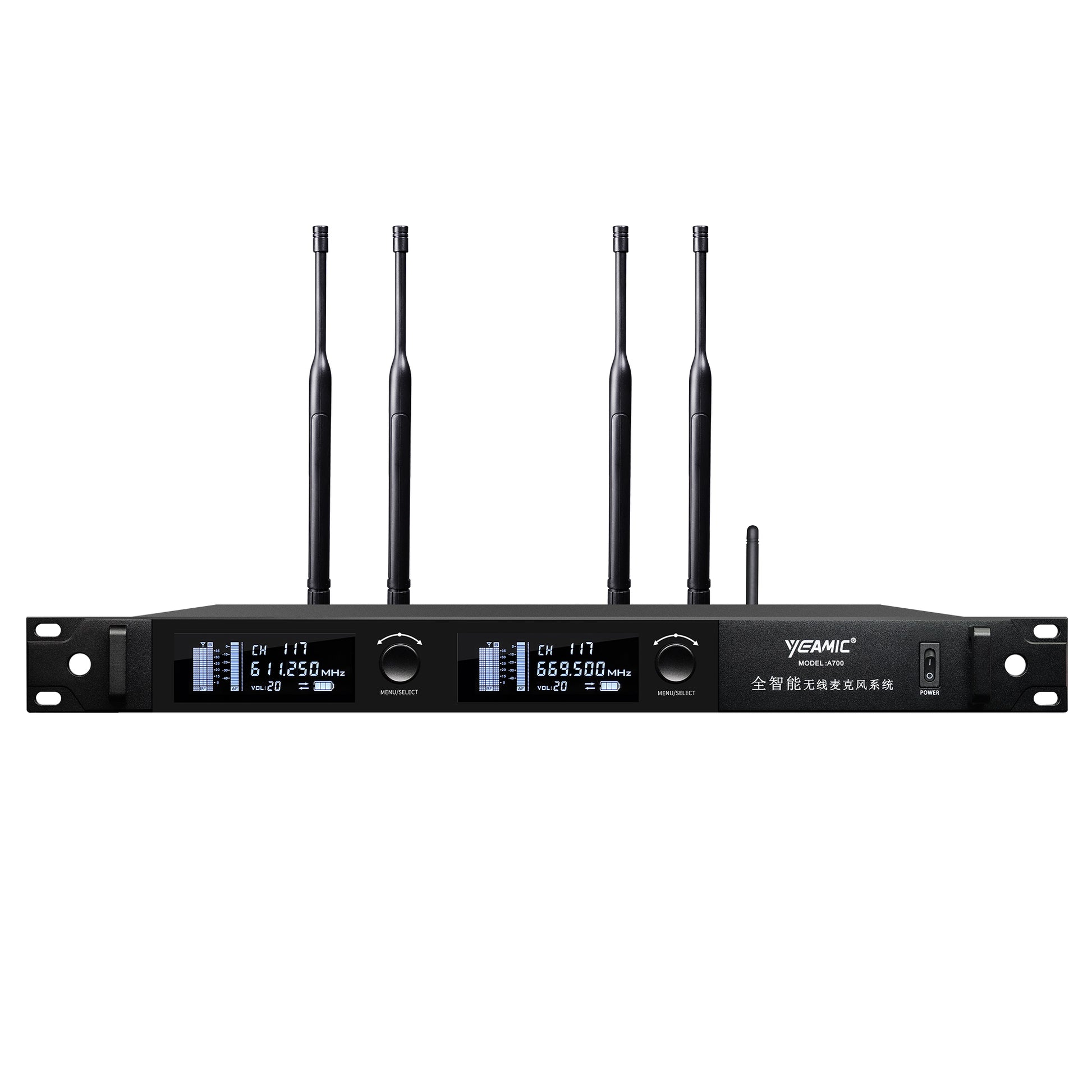

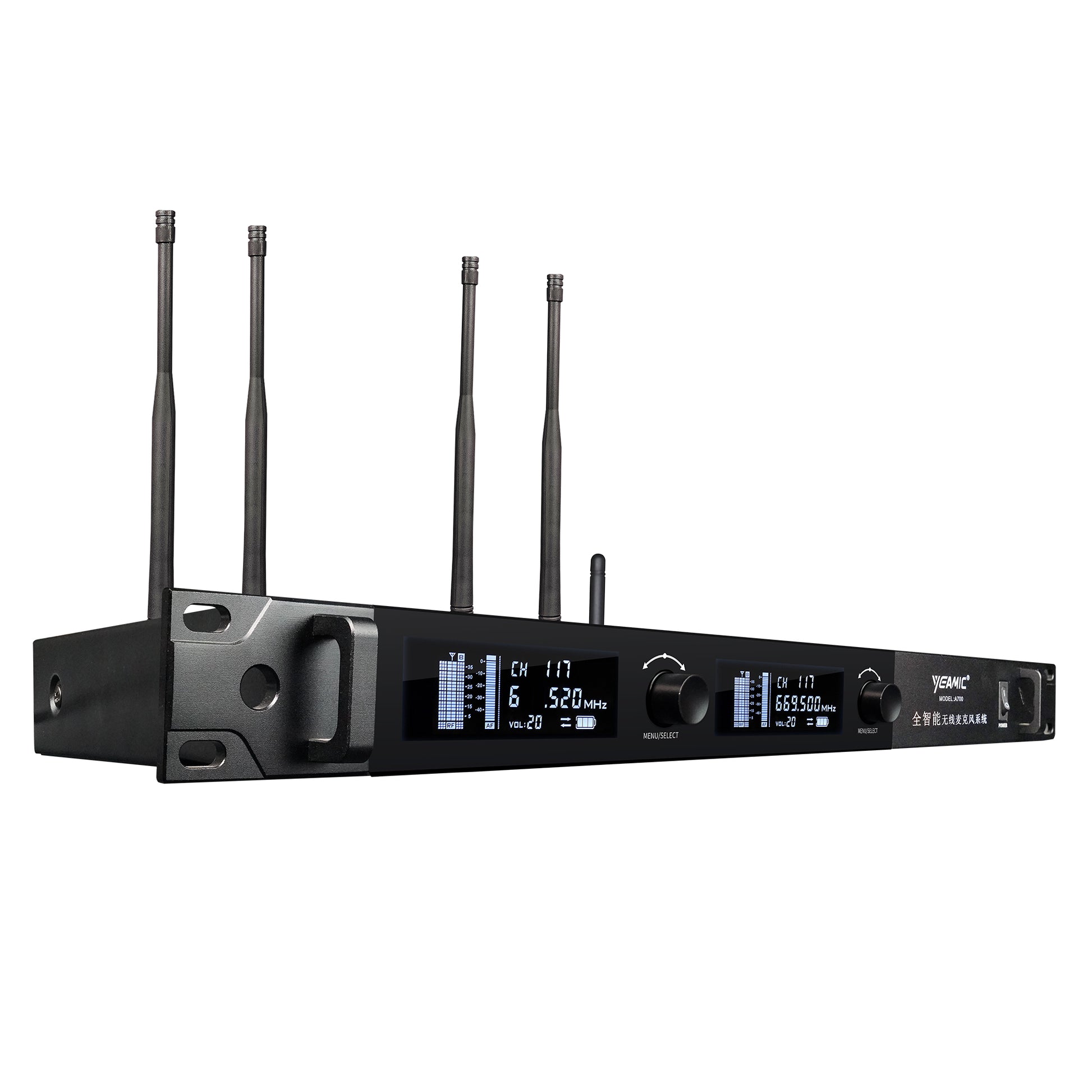

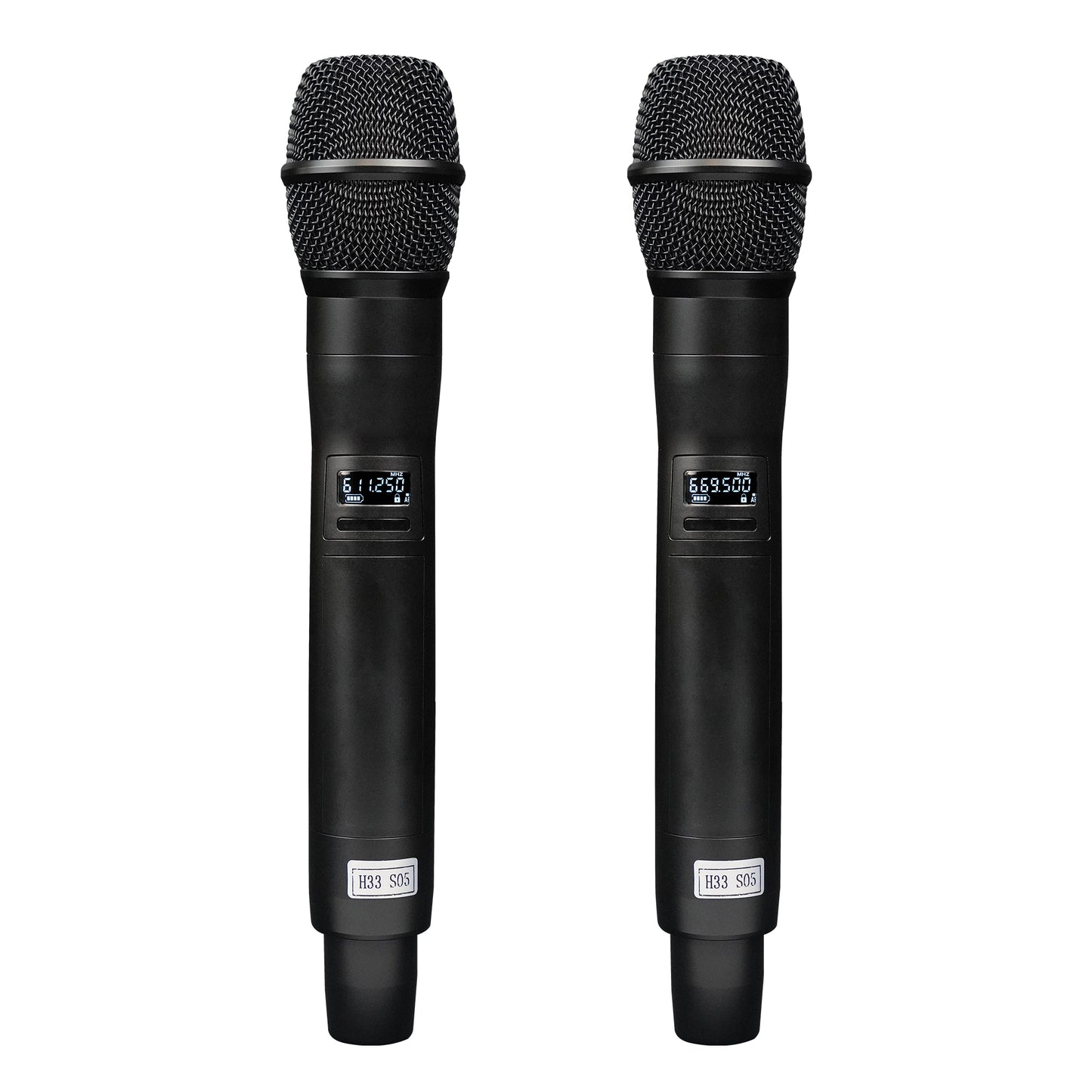

Receiver specification:      Microphone specification:

Frequency range: 600~700MHz       Frequency range: 600~700MHz

Channels number: 120+120          Channels number: 480 self-adaption

Mode of oscillation: PLL             Modulation: FM

Frequency stability: ±10ppm         Frequency stability: ±10ppm

Receiving sensitivity: -103dBm        Frequency response 50~17000Hz

Frequency response 50~17000Hz    Distortion: ≤1%

Distortion: ≤1%                     Directive: dynamic cardioid

Signal to noise ratio: ≥100dB         Power supply: 2×1.5V AA Size

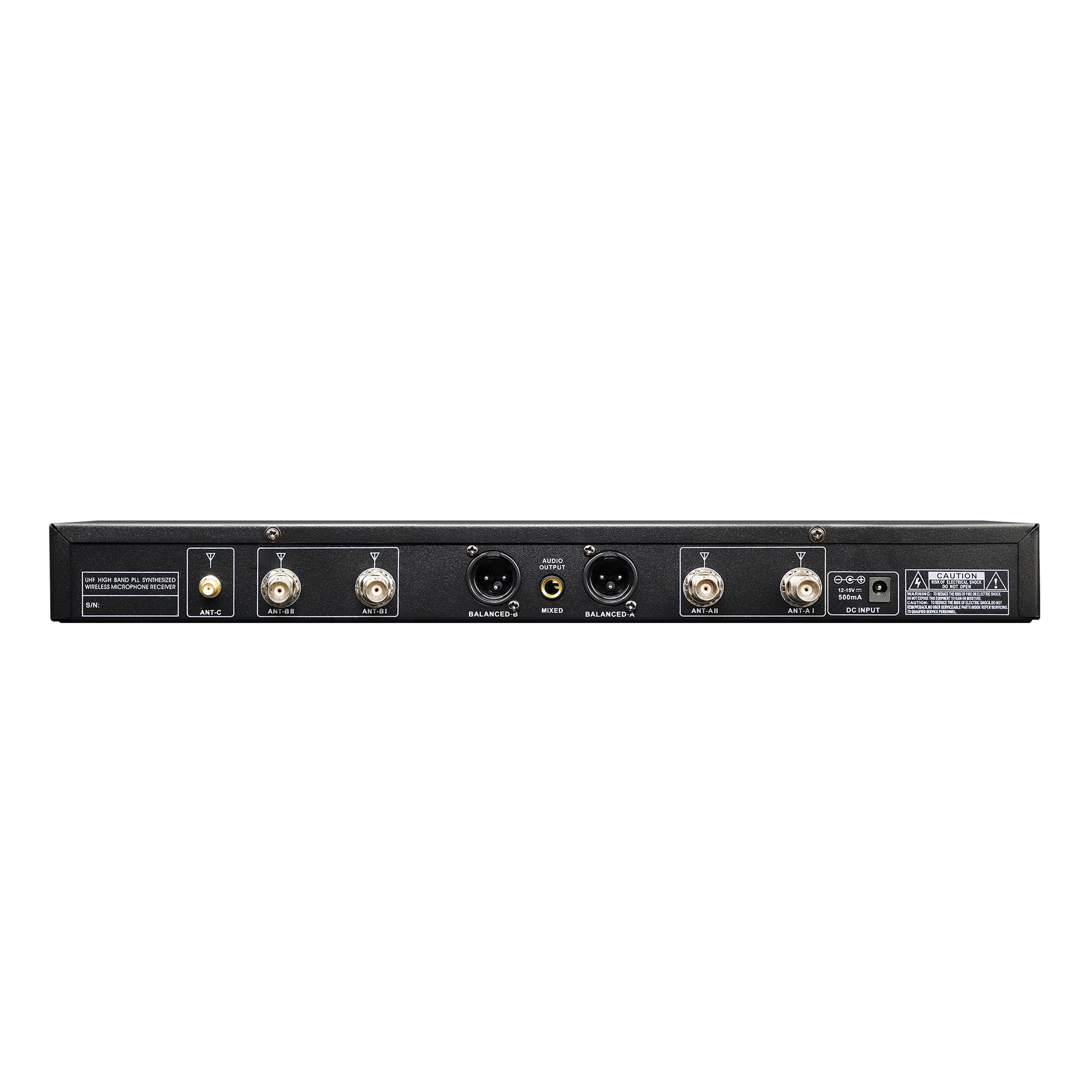

Audio output : XLR balance          Continuation time: 5~10H

and 6.35mm unbalance           Transmit power: 10~30mW self-adaption

Power supply: DC12V/1000mA       Synchronization mode: RF automatic

Power consumption: ≤8W
